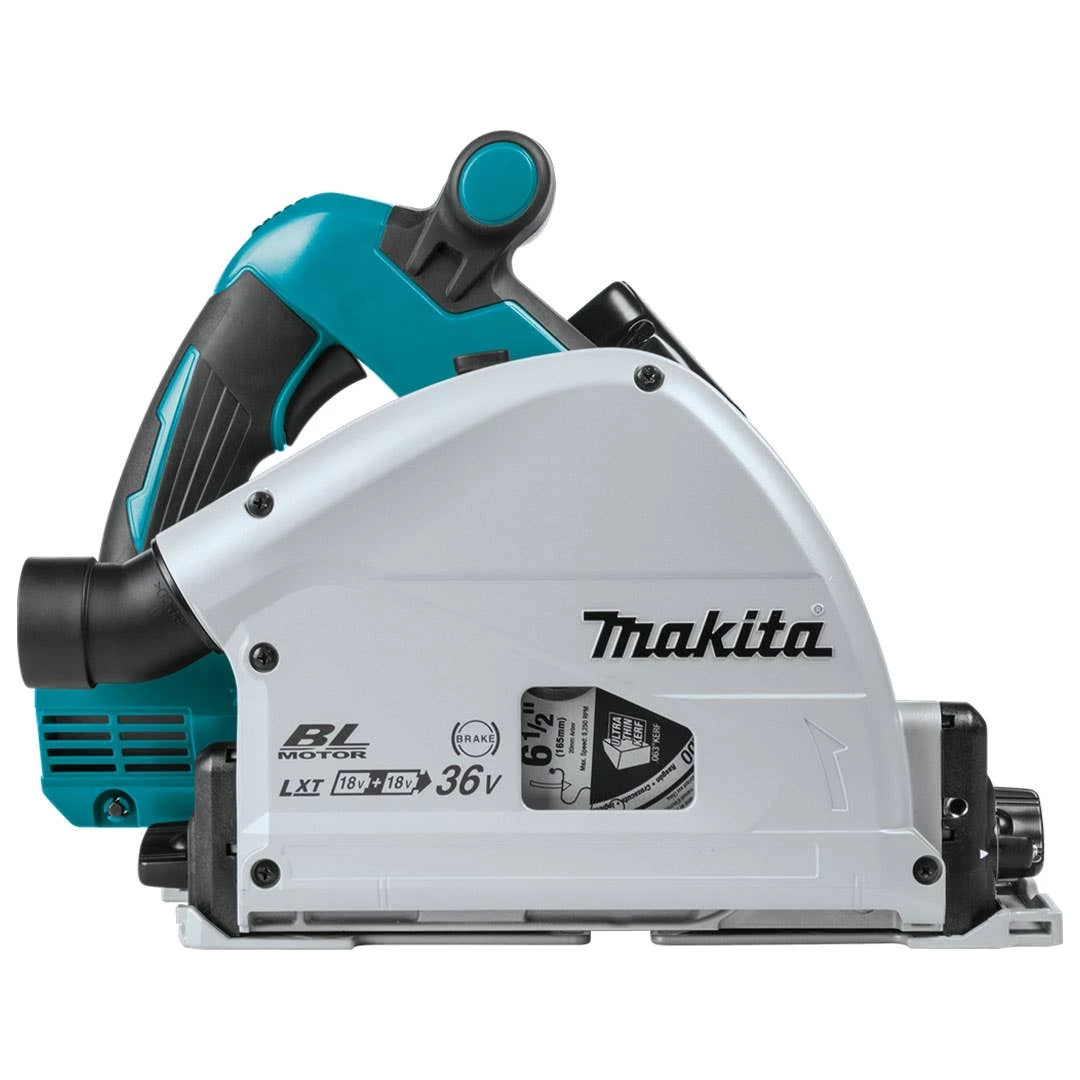

Makita 36V (18V X2) LXT Brushless 6-1/2″ Plunge Circular Saw (4.0Ah) Kit XPS01PMJ

Makita

36V (18V X2) LXT Brushless Cordless 6-1/2″ Plunge Circular Saw (4.0Ah) Kit XPS01PMJ

The Makita 36V (18V X2) LXT Brushless 6-1/2″ Plunge Circular Saw Kit (XPS01PMJ) delivers precise and more accurate cutting
when combined with an optional guide rail system (sold separately). The kit includes two 18V LXT 4.0Ah batteries, and each
reach a full charge in only 45 minutes on the efficient Rapid Optimum Charger – the fastest charge-time in the category –
for less downtime and increased productivity. For added convenience, the batteries feature an integrated L.E.D. battery
charge level indicator. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT batteries with
Automatic Speed Change Technology, which adjusts cutting speed and torque during the cut for optimum performance.

FEATURES:

• Powered by two LXT batteries; X2 LXT technology delivers more power, speed and run time without the hassles of a cord.
• Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian with optional, material specific blades (includes wood blade, other blades sold separately).
• Automatic Speed Change technology adjusts cutting speed and torque during cut for optimum performance.
• Electronic speed control maintains constant speed under load for smooth cutting.

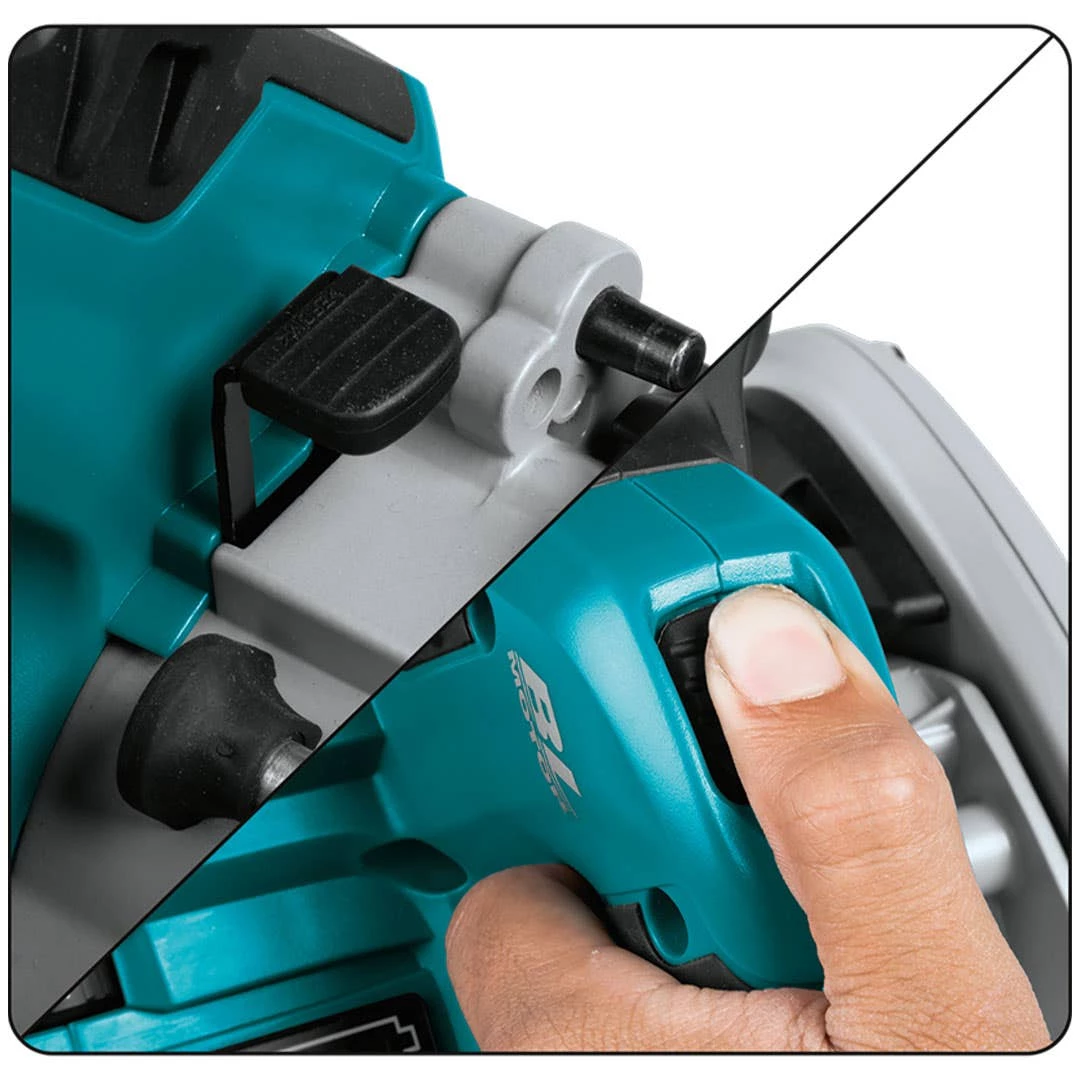

• Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation.
• Electric brake for maximum productivity.

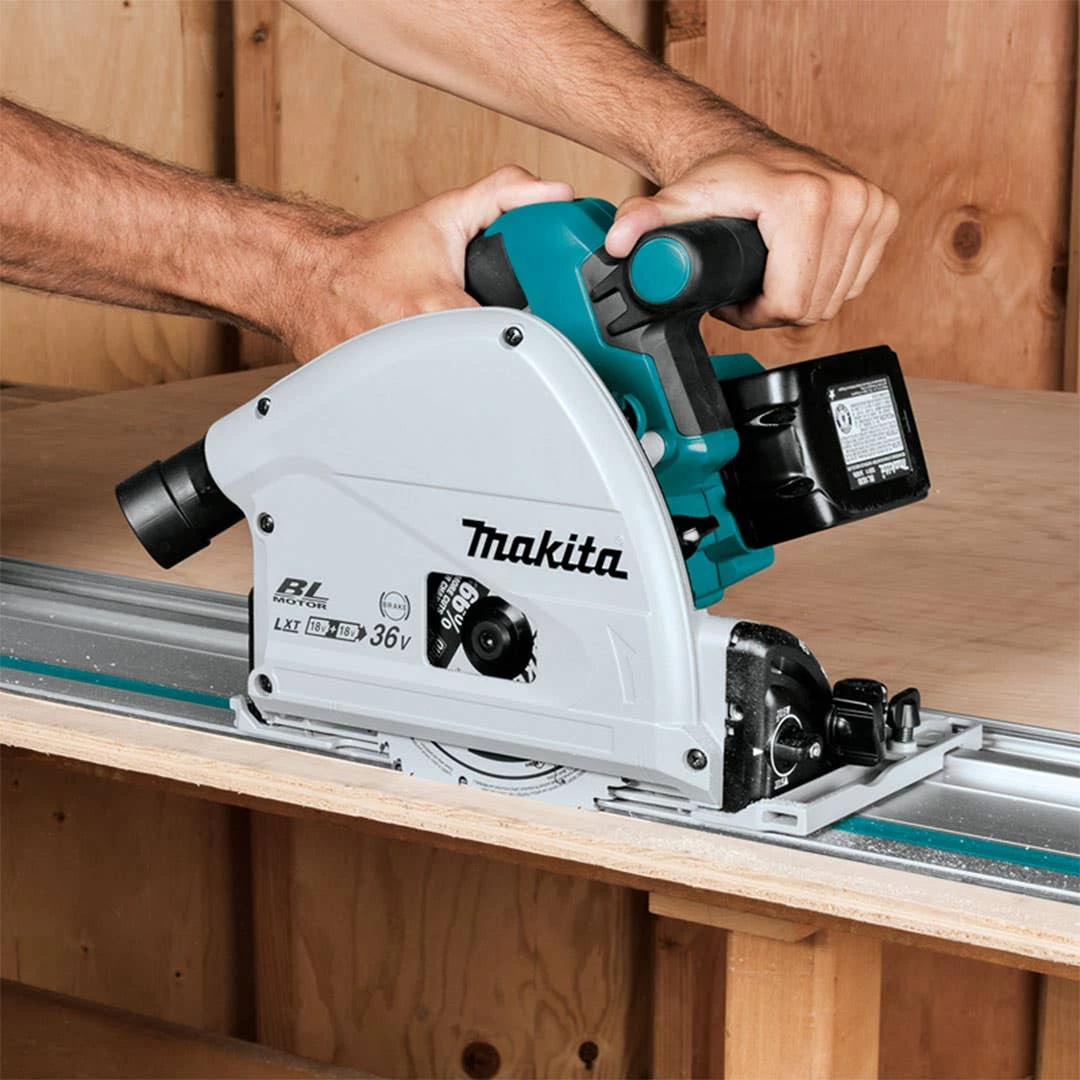

• Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail.
• 3-stage L.E.D. gauges indicate battery charge levels.
• The Dual Port Rapid Optimum Charger communicates with the batteries built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature.
• Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating.
• Optional Accessories: Guide Rail:118″ (194367-7), 55″ (194368-5), Clamp Set (194385-5), Rip Fence (165447-6).
• 3-year limited warranty on tool, batteries, and charger.

SPECIFICATIONS:

Blade Diameter	6-1/2″
Arbor (mm)	20 mm
Max. Cutting Capacity (at 90°)	2-3/16″
Max. Cutting Capacity (at 45°)	1-9/16″
No Load Speed (variable speed)	2,500 – 6,300 RPM
Battery	2X 18V LXT Lithium-Ion
Overall Length	13-5/8″
Automatic-start Wireless System (AWS)	No
Power Type	Cordless
Motor Type	Brushless
Form Factor (LXT)	X2
Net Weight (with battery)	11.2 lbs.

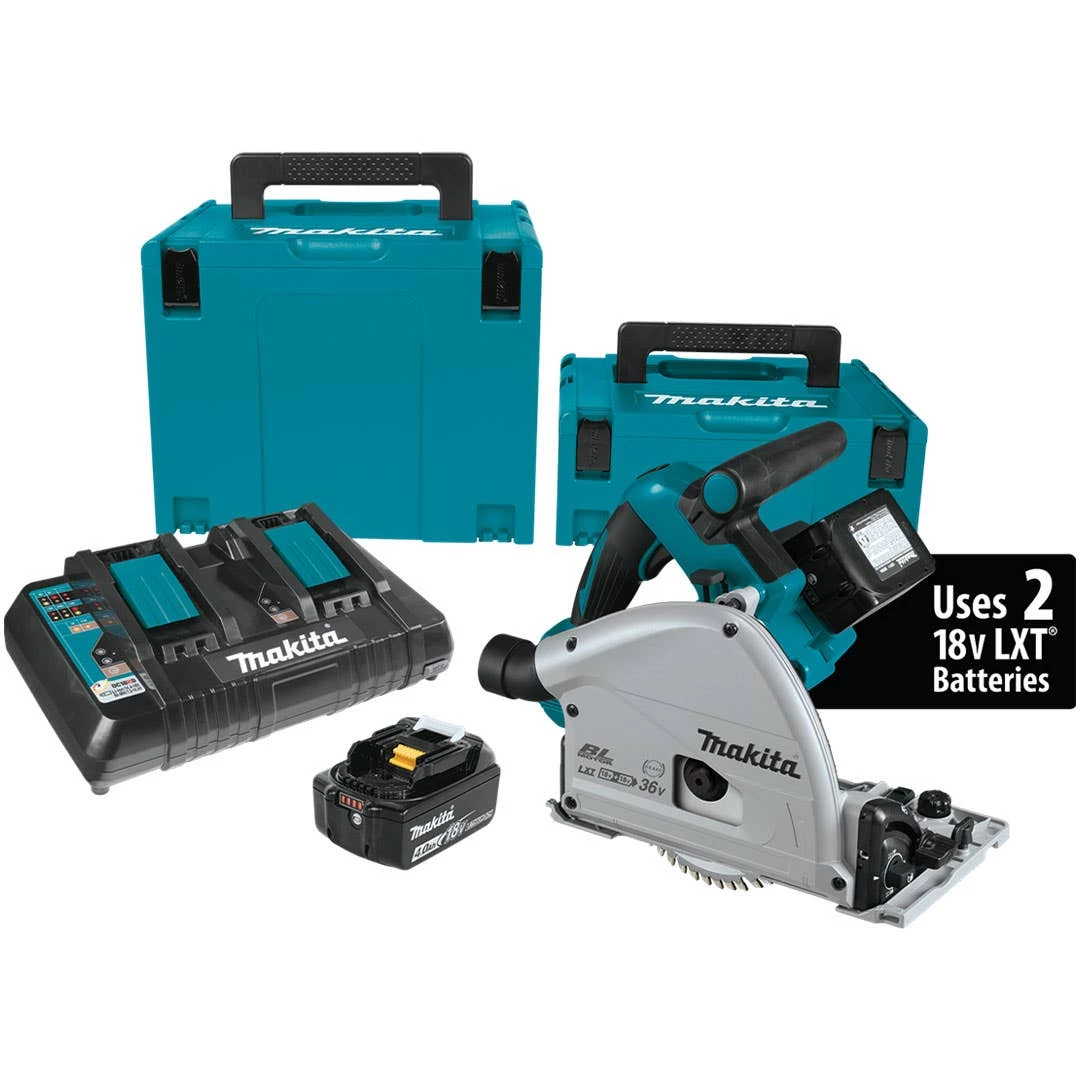

INCLUDES:

• (1) 36V (18V X2) LXT Brushless 6-1/2″ Plunge Circular Saw (XPS01Z)
• (1) 18V LXT Lithium-Ion Dual Port Charger (DC18RD)
• (2) 18V LXT Lithium-Ion 4.0Ah Battery (BL1840B)
• (1) 6-1/2″ 55T C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam. (B-57071)
• (1) Hex Wrench (783203-8)
• (1) Interlocking Case, X-Large (197213-3)
• (1) Interlocking Case, Medium (197211-7)
